Model No: GD 101

Brand Name: HNL

Warranty: 1 Year

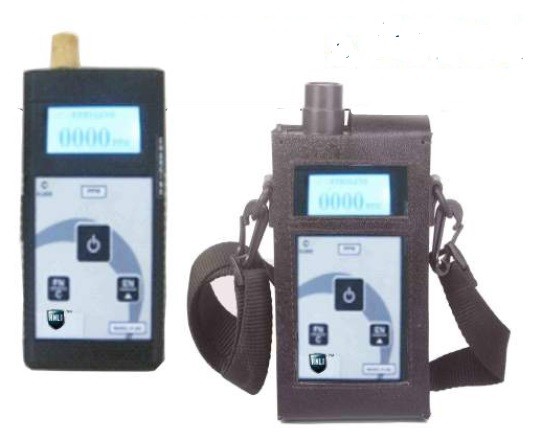

Portable Gas Monitor  The advanced Micro controller technology employed makes these ALERT METERS highly dependable, reliable and accurate. The complete automatic operation and calibration feature leaves no scope for user error. These Compact, self contained and intrinsically safe designed instrument housed in a weather proof high impact plastic case are powered with a replaceable 4X1.5V Dc battery. On switching 'ON', the instrument goes thorough its complete self integrity check, and displays factory set Warn and Alarm values before indicating Ready for monitoring. While in Operation, the instrument monitors the work place continuously giving the latest update concentration of designated Gas through diffusion sampling. Suction sampling is possible with an optional manual or battery operated pump and adaptor. The poison resistant Pellister or long life, integrally mounted electrochemical Sensors with inbuilt cross interference filters are gas specific. Optionally the sensors can be mounted on an extension cable for monitoring inaccessible locations before entry. The instruments emits an audible beep every 15 secs that provides confidence to the user that he is well protected. Audio, Visual also Warn and Alarms protect him from hazardous situations. The Warn and Alarm Values are factory set. Low Battery Alarm alerts the user to replace or recharge the Battery. Special features like maximum exposed concentration and TWA readings can be incorporated optionally  Specifications :          Overall Ranges: PPB/PPM/%V/V/LEL         Sampling Method: Diffusion (D) or Suction (S)         Principle: Specific to Application         Sensor Life: 2-5 years         Measurement: Continuous         Readout: Graphical Display         Resolution: 0.1 or 1 PPM/% as applicable         Accuracy: +/-2%& 0.5% for oxygen         Repeatability: +/-1%         Response Time: < 10 seconds at 95% variation         Alarms: Low& HI Visual and Audible (Pulsating & Continuous) , Vibrator (optional)         Low Battery Alarms: Audio & Visual         Power Supply: Standard 6VDC Battery , Rechargeable type         Battery Life: 6 to 8 hours         Housing: High Impact Plastic. (ABS)         Size & Weight: 119(H)X80(L)X25(D);135GM         Temperature Range: 0-55C         Warranty: One year.

O2/N2 , CO, CO2 , SOx , NOx , Etc :
